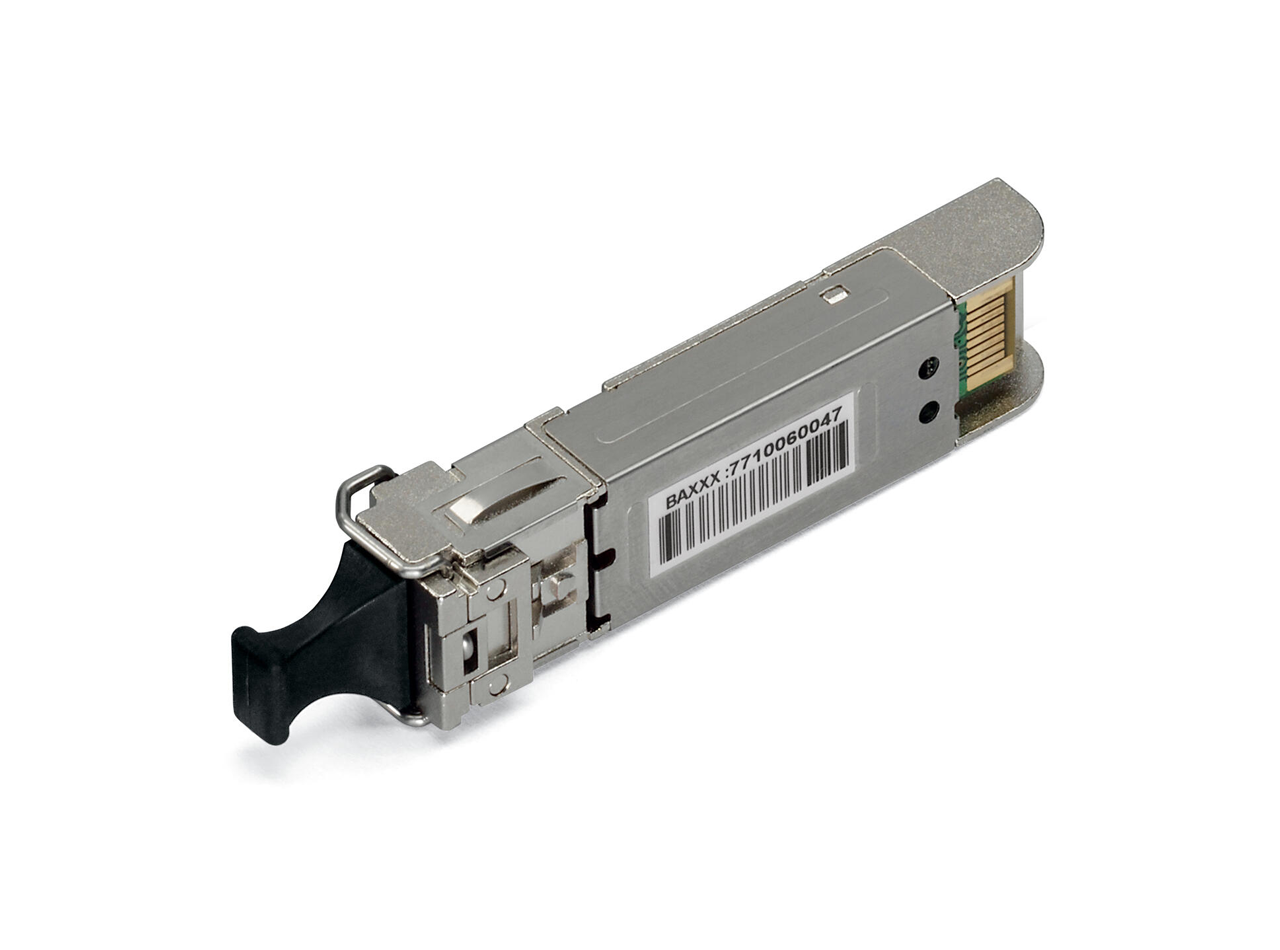

MAXON SFP Module (100BASE-FX, Multi-Mode, 1310 nm, 2 km, DDM)

The MAXON SFP Module is an industrial-grade optical transceiver designed for Fast Ethernet (100BASE-FX) applications over multi-mode fiber. Operating at a wavelength of 1310 nm, the module supports reliable data transmission over distances up to 2 km.

Equipped with Digital Diagnostics Monitoring (DDM), the module provides real-time monitoring of key operating parameters such as temperature, voltage, and optical power, ensuring improved network visibility and proactive maintenance.

Engineered for harsh environments, the module features an extended operating temperature range of –40°C to +100°C, high surge resistance, and a coated PCB for enhanced durability and long-term stability.

With a compact SFP (Small Form-Factor Pluggable) design and hot-pluggable capability, the module allows easy installation and replacement without system downtime.

Key Features

• Supports 100BASE-FX Fast Ethernet (IEEE 802.3u, 125 Mbps)
• Transmission distance up to 2 km (Multi-Mode Fiber)
• Wavelength: 1310 nm
• Digital Diagnostics Monitoring (DDM) for real-time status monitoring
• Extended temperature range: –40°C to +100°C
• High surge resistance: up to 1.2 kVDC
• Low power consumption
• Coated PCB for enhanced environmental protection
• Duplex LC optical connector
• SFP standard form factor (MSA compliant)
• Power supply: 3.3V
• Hot-pluggable design for easy installation and maintenance
• TTL signal detect indicator
• Differential LVPECL input/output
• Industrial-grade design for high reliability in harsh environments
