PRODUCT OVERVIEW

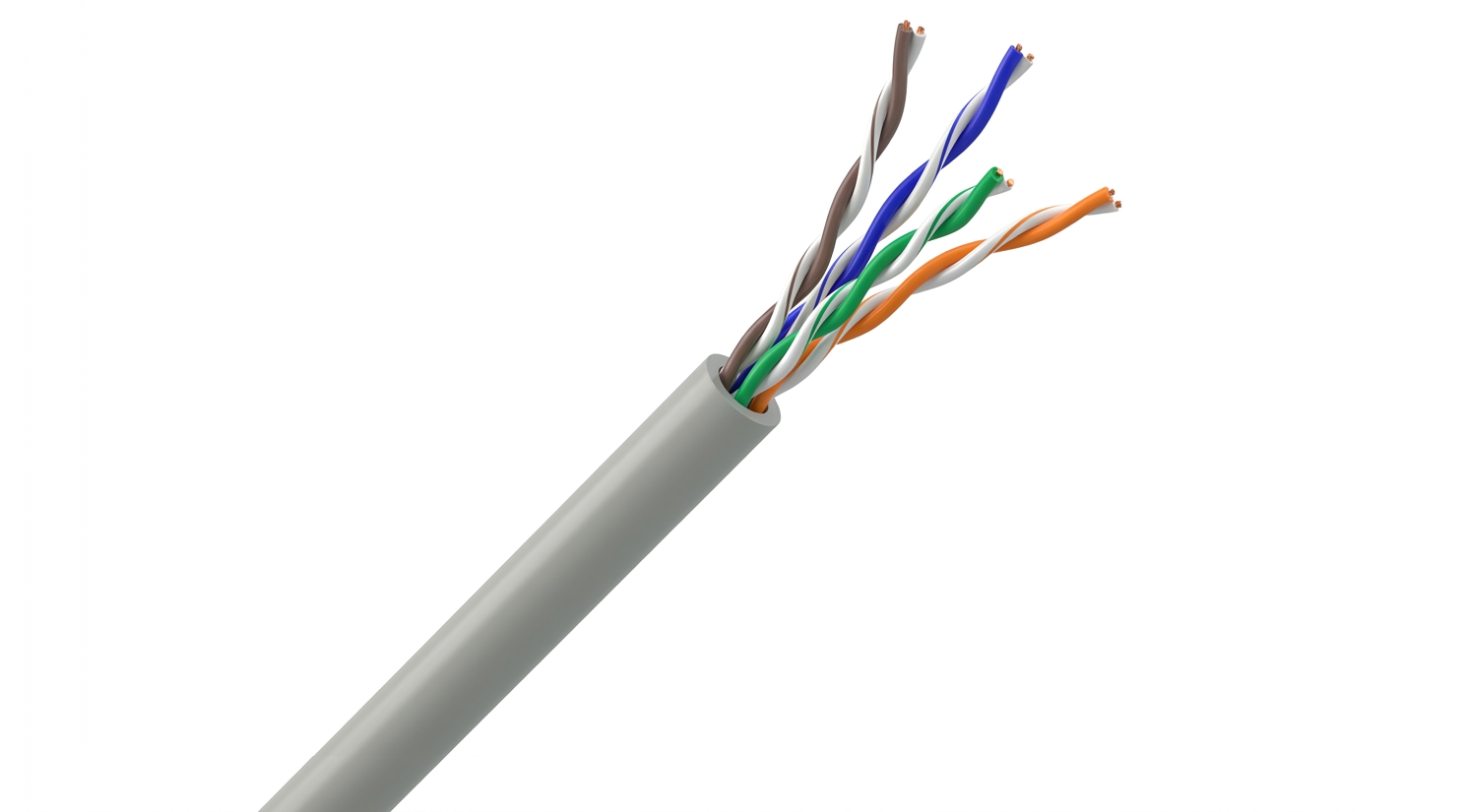

MAXON Cat5e UTP Indoor Cable is designed for high-performance data transmission in structured cabling systems (SCS) and video surveillance applications. The cable features four twisted pairs (8 conductors) of high-quality copper, ensuring stable and reliable signal performance.
Each conductor is insulated with color-coded polyethylene (PE) for easy identification and termination, while the outer durable PVC/LSZH sheath provides protection against mechanical stress and environmental factors. Engineered for indoor use, this cable delivers consistent Gigabit Ethernet performance.
KEY FEATURES
- 4 twisted pairs (8 conductors) – solid copper
- Conductor cross-section: 0.49 mm (~24 AWG)
- UTP design (Unshielded Twisted Pair)
- Color-coded PE insulation for आसान installation
- Durable PVC outer jacket (Indoor use)
- Stable transmission up to 1 Gbps (Gigabit Ethernet)
- Fluke tested for performance assurance
- Flexible and easy to install
APPLICATIONS
- Structured Cabling Systems (SCS)
- CCTV / Video Surveillance Systems
- LAN Network Installations
- Voice, Data & Video Transmission
- Office / Residential Indoor Cabling
PERFORMANCE SUPPORT
- 10BASE-T / 100BASE-TX / 1000BASE-T
- Gigabit Ethernet (1 Gbps)
- PoE / PoE+ Compatible (IEEE 802.3af / at)*
*ขึ้นอยู่กับระยะและการติดตั้ง
TECHNICAL SPECIFICATION (SUMMARY)
- Conductor: Solid Copper
- Conductor Size: 0.49 mm (~24 AWG)
- Insulation: Polyethylene (PE), Color-coded
- Jacket: PVC (White)
- Temperature Range: -20°C to +60°C
- Structure: 4 Pair Twisted
STANDARDS & COMPLIANCE
- ISO/IEC 11801
- ANSI/TIA-568 Series (Category 5e)
- Fluke Tested
- Certificate of Conformity
