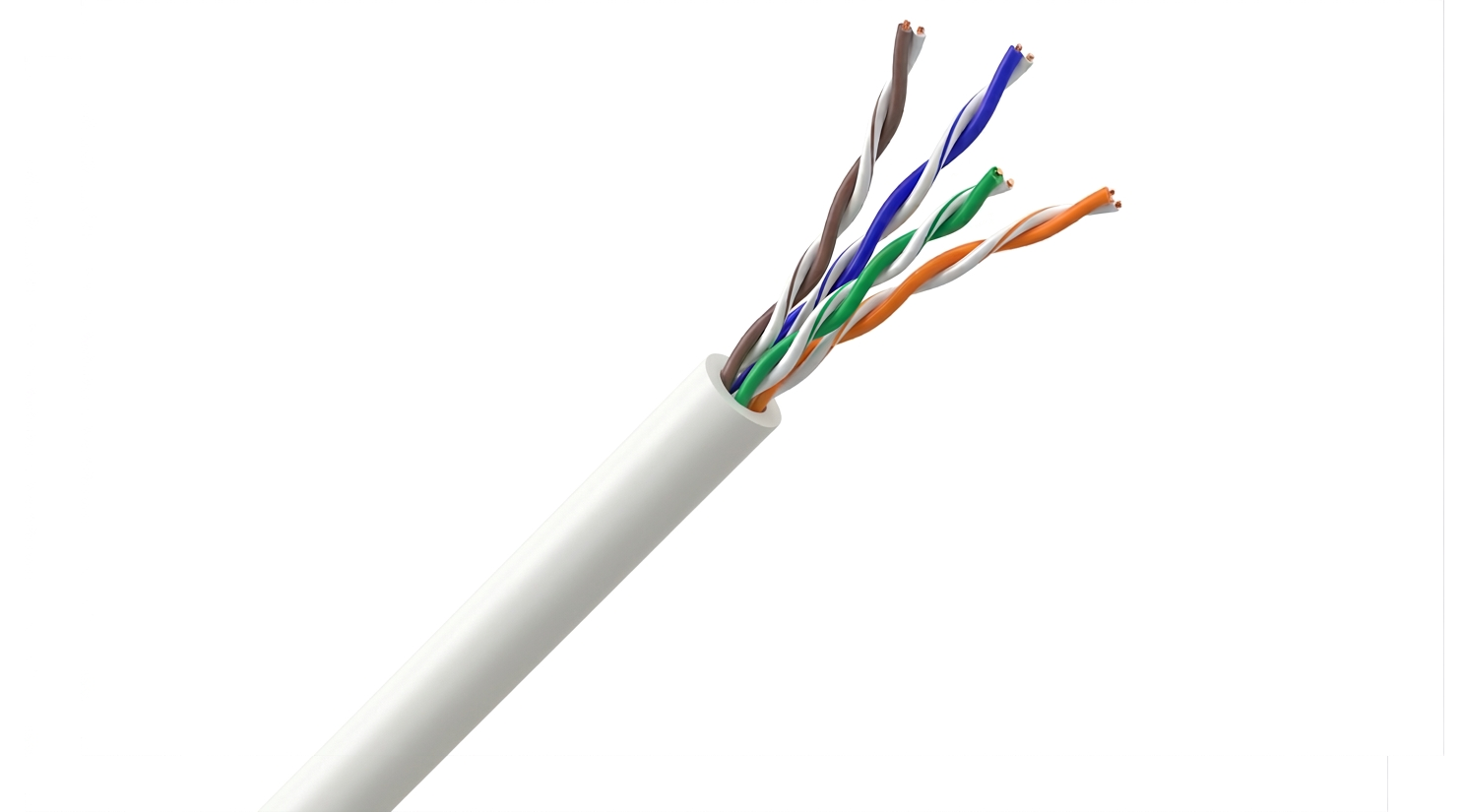

MAXON CORE PRO Series Cat6 Cable

550MHz | High Performance | LSZH | Premium Grade

PRODUCT OVERVIEW

MAXON CORE PRO Series Cat6 Cable is engineered for superior network performance, tested up to 550MHz, the highest bandwidth standard for Category 6 cabling. Designed with 4 balanced twisted pairs and a central nylon spline separator, the cable significantly reduces crosstalk and enhances signal integrity.

This advanced structure minimizes Near-End Crosstalk (NEXT) and improves ELFEXT, Return Loss (RL), and Insertion Loss (IL), resulting in lower system noise, fewer transmission errors, and higher data throughput. Ideal for high-speed networking environments requiring stability and performance.

KEY FEATURES

• Tested up to 550MHz bandwidth (Cat6 maximum performance)
• 4 twisted pairs with central nylon spline
• Enhanced NEXT, ELFEXT, RL & IL performance
• Reduced noise and transmission errors
• High stability for critical network applications
• Suitable for Gigabit and Multi-Gigabit Ethernet

PERFORMANCE

• 1Gbps – 5Gbps up to 100m (328 ft)
• 10Gbps up to 55m (180 ft)
• Optimized for high-speed data transmission

FIRE SAFETY (LSZH ADVANTAGE)

MAXON CORE LSZH Cable is designed for environments where fire safety is critical. The Low Smoke Zero Halogen (LSZH) jacket minimizes toxic smoke and corrosive gases in case of fire, protecting both human life and sensitive equipment.

• Complies with CPR (Construction Products Regulation) Class Dca
• Superior to basic Eca-rated cables
• Tested for:
  • Flame spread
  • Smoke emission
  • Acid gas (toxic fumes)
  • Flaming droplets

This ensures enhanced fire safety performance compared to standard PVC cables.

APPLICATIONS

• Data Centers
• Enterprise Networks
• Structured Cabling Systems (SCS)
• CCTV & Security Systems
• High-Speed LAN Infrastructure

STANDARDS & COMPLIANCE

• ISO/IEC 11801 (Class E)
• ANSI/TIA-568 Category 6
• CPR Class Dca (LSZH)
• RoHS Compliant
