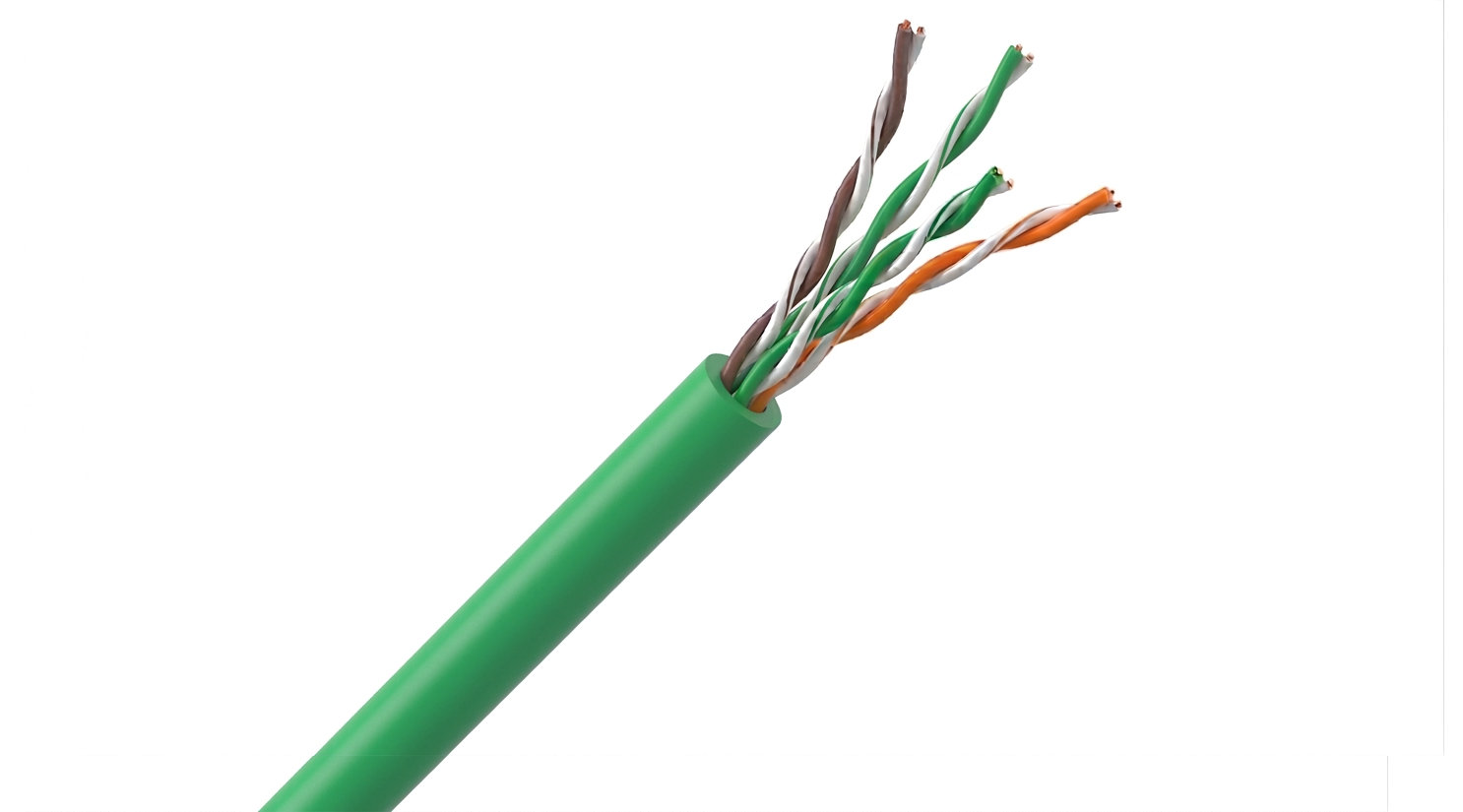

UTP Cat6A U/UTP LSZH Cable is engineered for high-speed data transmission in modern structured cabling systems. Designed to support bandwidth up to 550 MHz, this cable ensures stable and reliable performance for 10 Gigabit Ethernet applications.
The cable features a 4-pair twisted structure with an integrated cross separator, improving long-term performance while reducing mechanical stress and signal interference. A low smoke zero halogen (LSZH) jacket enhances safety by minimizing toxic emissions in case of fire, making it suitable for indoor environments such as data centers, offices, and critical infrastructure.
KEY FEATURES
- Category 6A performance up to 550 MHz
- U/UTP structure with central cross separator
- LSZH (Low Smoke Zero Halogen) jacket
- CPR Cca-s1a, d0, a1 fire rating
- Reduced ANEXT (Alien Crosstalk)
- High system margin for stable transmission
- Supports PoE / PoE+ (IEEE 802.3at)
- Easy installation with length marking on sheath
APPLICATIONS
- Data Centers & Server Rooms
- Enterprise & Office Networks
- Structured Cabling Systems (SCS)
- 10 Gigabit Ethernet Infrastructure
- CCTV & High-Speed Network Systems
PERFORMANCE SUPPORT
- 10BASE-T / 100BASE-TX / 1000BASE-T
- 10GBASE-T (up to 100 meters)
- Bandwidth: 500–550 MHz
TECHNICAL SPECIFICATION
- Cable Type: U/UTP, 4 Pair (Simplex)
- Conductor: Solid Copper, 24 AWG
- Insulation: Solid PE
- Outer Jacket: LSZH™ / FRNC
- Outer Diameter: Ø7.6 mm
- Color: Green (customizable)
- Temperature Range: -20°C to +60°C
- Min. Bend Radius: 8× Cable Diameter
- Tensile Strength: 80 N
- Fire Load: 630 MJ/m
ELECTRICAL CHARACTERISTICS
- Conductor Resistance Unbalance: ≤ 2%
- Delay Skew: ≤ 45 ns/100 m
- Propagation Delay: ≤ 545 ns/100 m
- Insulation Resistance: ≥ 5000 MΩ·km
- Max Loop Resistance: 190 Ω/km
- Voltage Rating: < 75 VDC / < 50 VAC
- NVP: 69%
- Coupling Attenuation: ≥ 40 dB
STANDARDS & COMPLIANCE
- ISO/IEC 11801 (Class EA)
- ANSI/TIA-568 Category 6A
- IEC 61156-5
- EN 50288-10-1
- EN 50173 Series
- CPR: Cca-s1a, d0, a1
- EN 55022 / EN 55024
- RoHS Compliant
