Product Description

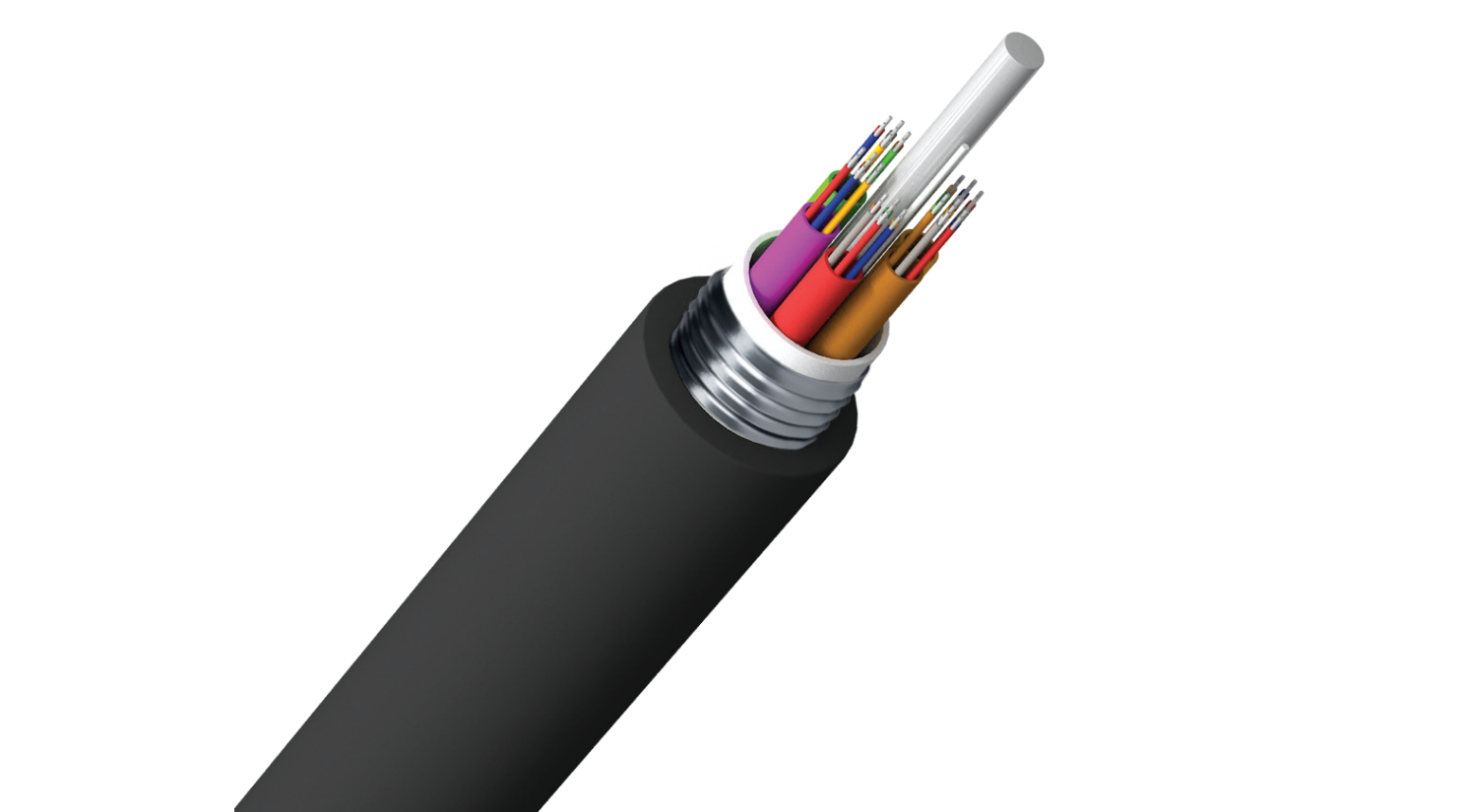

MAXON optical fiber cable is designed using Single Mode (9/125 µm) fiber, optimized for long-distance, high-speed data transmission.

The cable is suitable for both aerial and duct installations, providing enhanced mechanical protection and low-friction characteristics for efficient deployment.

It offers excellent resistance to environmental factors, including moisture, UV exposure, and external stress, ensuring long-term operational stability.

Fibers and loose tubes are color-coded in accordance with international standards, enabling easy identification and maintenance.

Applications

• Ethernet LAN Networks
• CCTV Surveillance Systems
• FTTx Infrastructure
• CATV & Broadband Networks
• Telecom & Data Communication Systems

MAXON optical fiber cables are designed to operate reliably for over 30 years under standard service conditions without degradation in performance.

They are particularly suitable for:

• Outdoor environments with high electrical field strength
• Power utility communication systems
• Areas with frequent lightning or harsh weather conditions
• Both aerial and duct installations

Standards & Compliance

MAXON optical fiber cables comply with the following international standards:

• ISO/IEC 11801 (2007 / 2011 Ed.2.2)
• ANSI/TIA/EIA-568 Series (B.3, C.3, 568.3-D)
• Telcordia (Bellcore) GR-20-CORE, GR-409-CORE
• IEC Standards: IEC 60793, IEC 60794-1-2, IEC 61034-2, IEC 60754-2
• ICEA Standards: ANSI/ICEA S-640, ICEA S-596, ICEA S-696
• EN 50173
• ITU-T G.652.D, ITU-T G.657.A2
• TIA/EIA-598-C (Fiber Color Coding)
• IEEE 802.3 Series (Fast Ethernet, Gigabit, 10G / 40G / 100G Ethernet)
• RoHS Compliant

Key Features

• Single Mode Fiber (9/125 µm)
• Suitable for Aerial & Duct Installation
• Enhanced Mechanical Strength & Durability
• Low Friction Jacket for easy installation
• Excellent Environmental Protection (UV / Moisture / EMI)
• Standardized Color Coding System
• Long Service Life (≥ 30 Years)
• Reliable performance in harsh outdoor environments
