Product Description

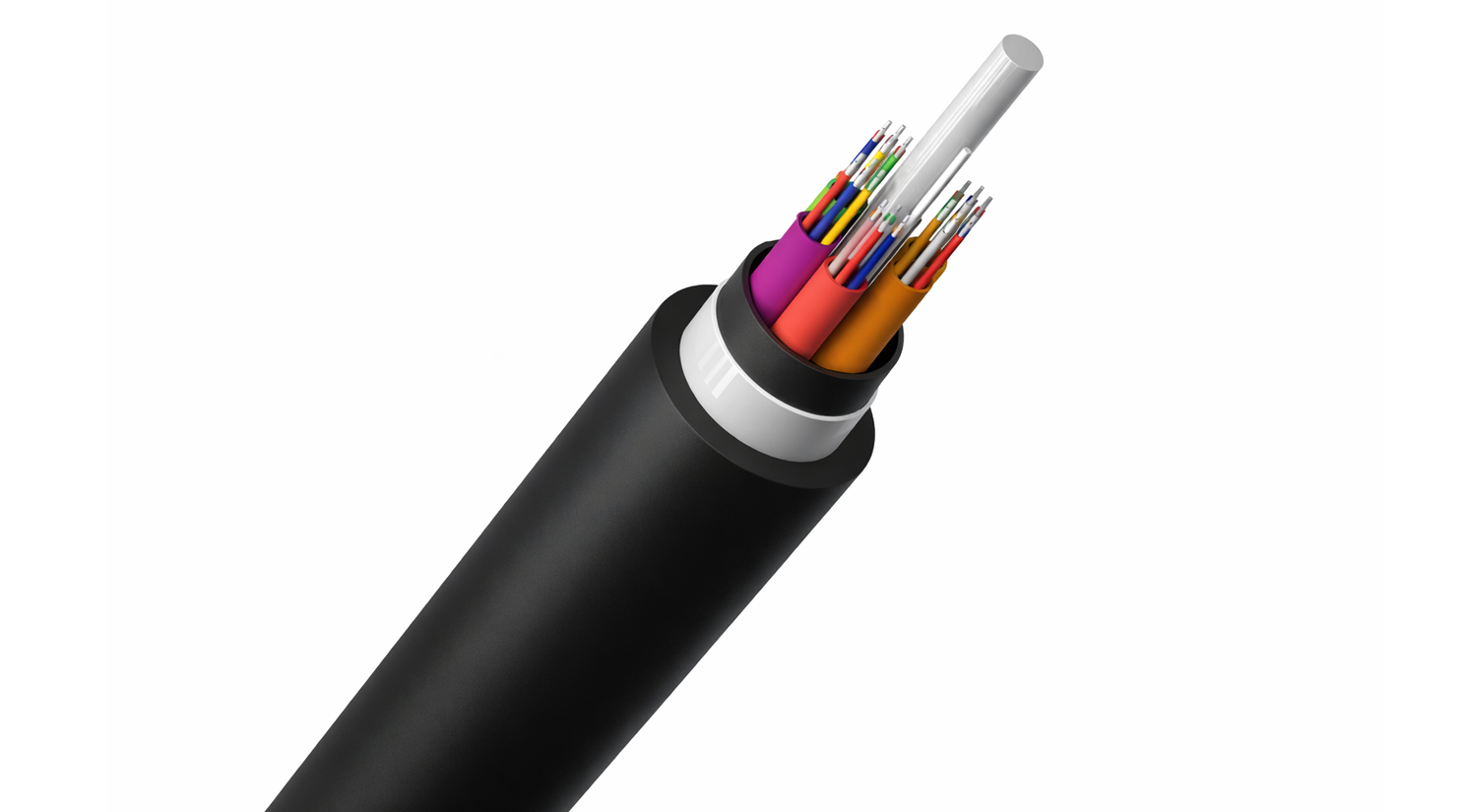

MAXON ADSS (All-Dielectric Self-Supporting) Fiber Optic Cable – Double Jacket is designed for high-performance aerial deployment without the need for metallic support elements.
The cable features a double jacket construction, providing enhanced mechanical strength, durability, and protection against environmental stress. Its all-dielectric design makes it ideal for installation in high electrical field environments, such as power transmission lines.
Engineered with Single Mode (9/125 µm) fiber, the cable ensures reliable long-distance transmission with excellent performance and stability.
Design Features
- All-Dielectric Self-Supporting (ADSS) – No metallic components
- Double Jacket Structure for superior mechanical protection
- Suitable for Aerial Installation (Pole-to-Pole Deployment)
- Low-friction outer sheath for easy installation
- Excellent resistance to UV, moisture, and environmental hazards
- Standard color-coded fiber and loose tube design
- Optimized for long-span deployment in harsh environments
Applications
- Ethernet LAN Networks
- CCTV Surveillance Systems
- FTTx Infrastructure
- Power Utility Communication Systems
- Backbone & Long-Distance Transmission
MAXON ADSS cables are designed to operate reliably for over 30 years under normal service conditions without degradation in performance.
Ideal for:
- Outdoor environments with high electrical field strength
- Areas with frequent lightning and thunderstorms
- Long-span aerial installations without grounding requirements
Standards & Compliance
MAXON ADSS fiber optic cables are manufactured and tested in accordance with international standards:
- ISO 9001 / ISO 14001 Quality Systems
- ISO/IEC 11801 (2007 / 2011 Ed.2.2)
- ANSI/TIA/EIA-568 Series (B.3, C.3, 568.3-D)
- Telcordia (Bellcore) GR-20-CORE, GR-409-CORE
- IEC Standards: IEC 60793, IEC 60794-1-2, IEC 61034-2, IEC 60754-2
- ICEA Standards: ANSI/ICEA S-640, ICEA S-596, ICEA S-696
- EN 50173
- ITU-T G.652.D, ITU-T G.657.A2
- TIA/EIA-598-C (Fiber Color Coding)
- IEEE 802.3 Series (Fast Ethernet, Gigabit, 10G / 40G / 100G Ethernet)
- RoHS Compliant
Performance Highlights
- Designed for long-span aerial deployment without metallic support
- Excellent performance in high-voltage / EMI environments
- High durability with double jacket protection
- Stable transmission for long-distance communication networks
Key Features
- Single Mode Fiber (9/125 µm)
- ADSS Structure (Non-metallic)
- Double Jacket for enhanced protection
- High resistance to UV / moisture / environmental stress
- Suitable for high electric field environments
- Long service life (≥ 30 years)
- Easy installation and maintenance
