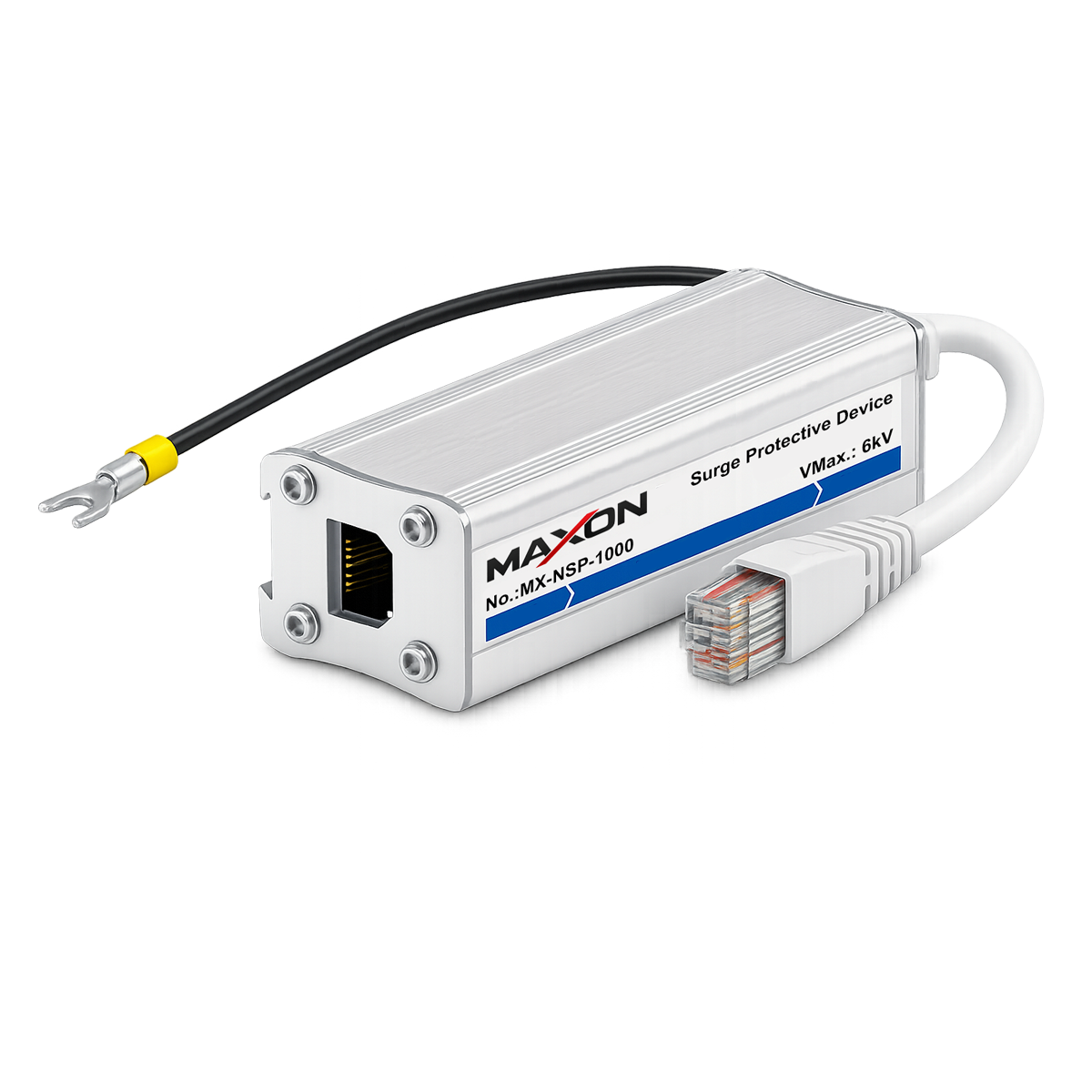

The MAXON MX-NSP-1000 is a professional-grade Gigabit Ethernet Surge Protective Device (SPD) designed to protect network equipment from lightning strikes, induced surge voltages, and transient overvoltage.
Supporting 10/100/1000Base-T Ethernet and fully compatible with PoE Mode A, Mode B, PoE+, and PoE++ (IEEE 802.3af/at/bt), it provides reliable protection without affecting network performance.
Its industrial aluminum housing, shielded RJ45 interfaces, and DIN rail mounting make it ideal for CCTV, industrial networking, wireless communication, and outdoor PoE installations.
The MX-NSP-1000 is suitable for protecting:
| Item | Specification |
|---|---|
| Model | MX-NSP-1000 |
| Data Rate | 10/100/1000 Mbps |
| Ethernet Standard | 10/100/1000Base-T |
| PoE Standard | IEEE 802.3af / at / bt |
| PoE Mode | Mode A / Mode B |
| Maximum Surge Voltage (Vmax) | 6kV |
| Maximum Continuous Voltage (Uc) | 6VDC / 60VDC |
| Nominal Operating Voltage (Un) | 6V / 60V |
| Nominal Discharge Current (In) | 1.5kA (8/20μs) |
| Maximum Discharge Current (Imax) | 8kA (8/20μs) |
| Protection Voltage (Up) | <50V @1kV (1.2/50μs) |
| Residual Voltage | <14V |
| Rated Current | 1A |
| Bandwidth | >155MHz |
| Protected Lines | 8 Lines |
| Connection | RJ45 to RJ45 |
| Mounting | DIN Rail |
| Housing | Aluminum Alloy |
| Protection Rating | IP40 |
| Operating Temperature | -40°C to +80°C |
The MX-NSP-1000 complies with internationally recognized standards for surge protection and electromagnetic compatibility.
